UNI-T UT513A Insulation Resistance Tester – Digital Megohmmeter, 2500V/5000V - a black handheld device with a digital display showing 500V, multiple control buttons, and top input ports.

UNI-T UT513A Insulation Resistance Tester – Digital Megohmmeter, 2500V/5000V

$177.05
$177.05 $268.26
Skip to product information
UNI-T UT513A Insulation Resistance Tester – Digital Megohmmeter, 2500V/5000V - a black handheld device with a digital display showing 500V, multiple control buttons, and top input ports.
  • UNI-T UT513A Insulation Resistance Tester – Digital Megohmmeter, 2500V/5000V - a black handheld device with a digital display showing 500V, multiple control buttons, and top input ports.

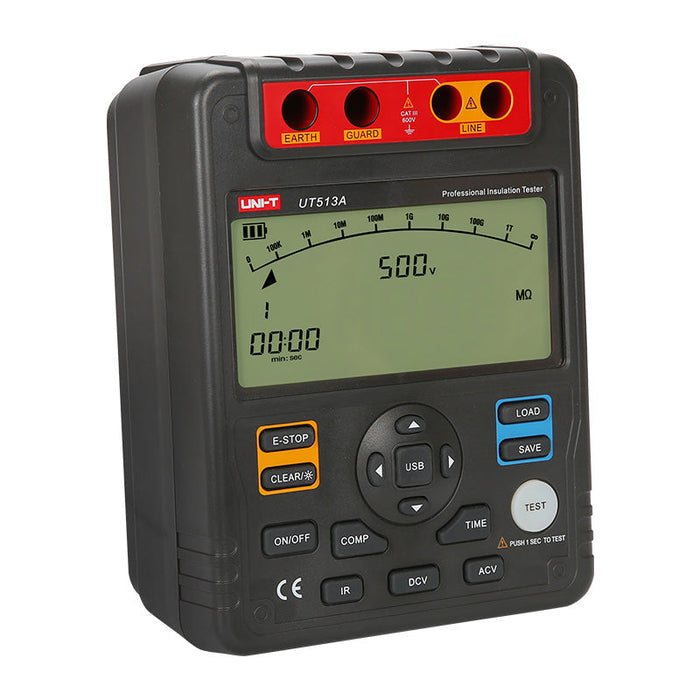

  • UNI-T UT513A Insulation Resistance Tester – Digital Megohmmeter, 2500V/5000V - a black handheld device with a digital display showing 500V, multiple buttons, and top input ports.
  • UNI-T UT513A Insulation Resistance Tester – Digital Megohmmeter, 2500V/5000V - a black handheld device with a digital display showing 500V and 00:00, featuring top ports and front buttons.

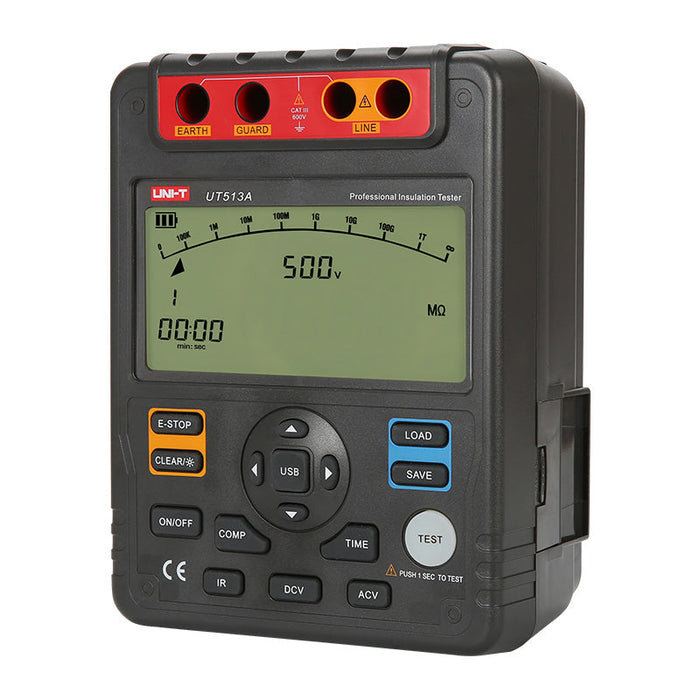

  • UNI-T UT513A Insulation Resistance Tester – Digital Megohmmeter, 2500V/5000V - a digital display set to 500V, with front-facing buttons and top input ports.

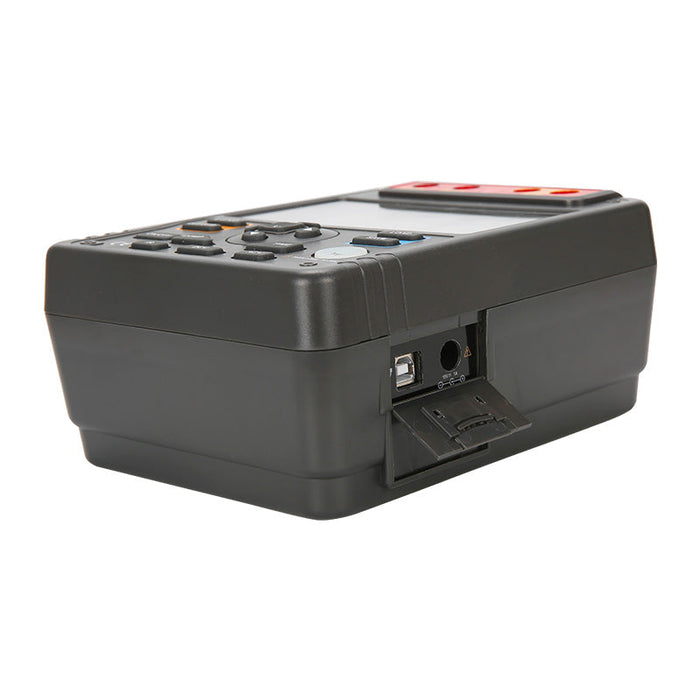

  • UNI-T UT513A Insulation Resistance Tester – Digital Megohmmeter, 2500V/5000V - side view showing a black handheld device with a USB port and power input behind an open plastic cover.
  • UNI-T UT513A Insulation Resistance Tester – Digital Megohmmeter, 2500V/5000V - a black handheld device with a digital display showing 500V, multiple control buttons, and top input ports.
  • UNI-T UT513A Insulation Resistance Tester – Digital Megohmmeter, 2500V/5000V - a black handheld device with a digital display showing 500V, multiple buttons, and top input ports.
  • UNI-T UT513A Insulation Resistance Tester – Digital Megohmmeter, 2500V/5000V - a black handheld device with a digital display showing 500V and 00:00, featuring top ports and front buttons.
  • UNI-T UT513A Insulation Resistance Tester – Digital Megohmmeter, 2500V/5000V - a digital display set to 500V, with front-facing buttons and top input ports.
  • UNI-T UT513A Insulation Resistance Tester – Digital Megohmmeter, 2500V/5000V - side view showing a black handheld device with a USB port and power input behind an open plastic cover.
UNI-T UT513A Insulation Resistance Tester – Digital Megohmmeter, 2500V/5000V

UNI-T UT513A Insulation Resistance Tester – Digital Megohmmeter, 2500V/5000V

$177.05
$177.05 $268.26

UNI-T UT513A is a insulation resistance tester (megohmmeter) for electricians and maintenance engineers. Genuine UNI-T supplied by Digilog.pk with manual and warranty.

Key Features

  • Test Voltages: 2500V/5000V
  • Max Resistance Range: 40GΩ
  • Data storage: 18
  • Auto range/Auto power off
  • Test voltage secondary display
  • Low battery indication
  • Comparison measurement
  • Applications: electrical maintenance, wiring, panels and safety testing

Technical Specifications

Test Voltages 2500V/5000V
Max Resistance Range 40GΩ
Auto range/Auto power off Yes
Test voltage secondary display Yes
Low battery indication Yes
Data storage 18
Comparison measurement Yes
Polarization index (PI) Yes
Dielectric absorption ratio (DAR) Yes
USB interface Yes
Analog bar graph 30
LCD backlight Yes
Over-range warning Yes
High voltage indication Yes

What's in the Box

  • UT513A insulation resistance tester
  • Test leads
  • English user manual
  • Carrying case

Downloads

  • UNI-T UT513A Product Page & Manual

Certifications: CE, RoHS | HS Code: 9030.39
